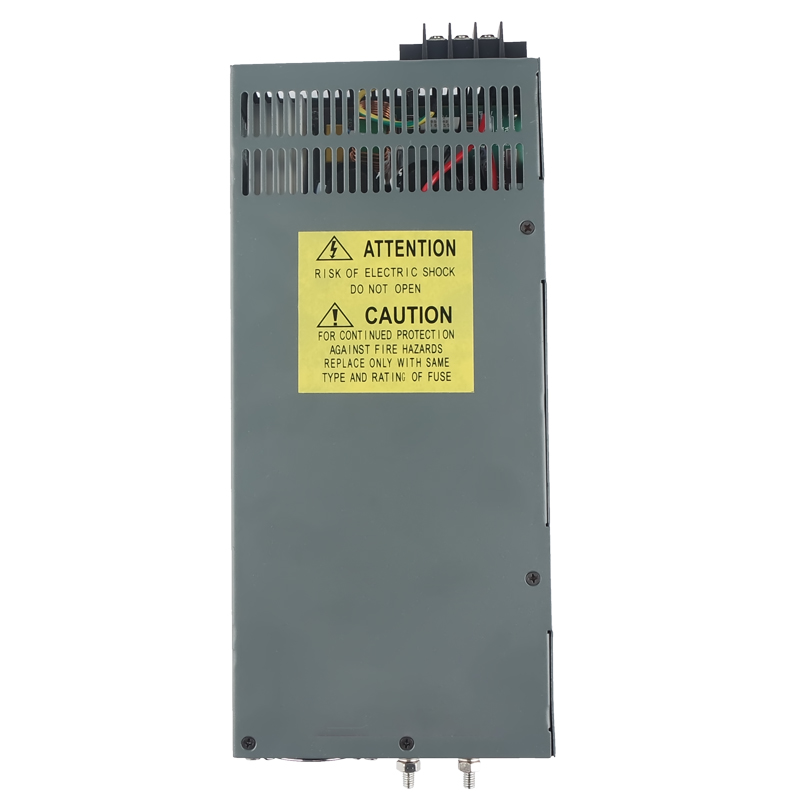

AoCa professional 1000W Switching SVSeries Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
380V can be chosen by the switch.
Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.
Low cost also makes it more acceptable for general usage.
| Model Performance | SV-1000-12 | SV-1000-13.5 | SV-1000-15 | SV-1000-24 | SV-1000-27 | SV-1000-48 |
| DC Output Volta | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output Voltage Tolerance (Note 2) | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated Output Current | 50A | 44A | 40A | 25A | 22A | 12.5A |
| Output Current Range | 0-40A | 0-36A | 0-32A | 0-20A | 0-18A | 0-10A |
| Ripple And Noise (Note 3) | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 200mVp-p | 300mVp-p |
| Inlet Stability (Note 4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability (Note 5) | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 600W | 600W | 600W | 600W | 600W | 600W |
| Efficiency | 84% | 84% | 83% | 85.50% | 86.50% | 87% |
| DC Voltage Adjustable Range | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 24-30V | 41-56V |
| Input Voltage Range | 88~132VAC/176~380VAC CHOOSE BY SWITCH 47~63Hz; 124~380VDC | |||||
| Input Current | 7A/115V 3.5A/230V | |||||
| Surge Current | 0.95/100~240VAC | |||||
| Leakage Current | 18A/115V 36A/230V | |||||
| Overload Protection | <3.5mA/240VAC | |||||
| Over-voltage Protection | 105%~135% type: FOLDBACK cut off output reset: Automatic recovery | |||||
| High-Temperature Protection | 13.8~16.2V | 15.5~18.2V | 18~21V | 27.6~32.4V | 31~36.5V | 57.6~67.2V |
| Temperature Coefficient | RTH1 OR RTH2>=55°C FAN ON, <=45°C FAN OFF, >=70°C cut off output | |||||
| Start-up, Upper, Retention Time | ±0.03%°C(0~50°C) | |||||
| Shock Resistance | 1.5s, 50ms, 20ms | |||||
| Withstand | 10~500Hz, 2G 10min./1circle, time: 60min., axes | |||||
| Insulation Resistance | Input to Output Isolation: 3KVAC input&shell: 1.5KVAC output &shell: 0.5KVAC | |||||
| Work Temperature/ | Input to Output Isolation, input&shell, output &shell: 500VDC/100M Ohms | |||||
| Humidity | ||||||
| Storage Temperature, Temperature | (-10°C ~ +50°C, 20%~90%RH) | |||||
| Outline Dimension | -20°C ~ +85°C, 10%~95%%RH | |||||
| Weight | 291*132*68mm shell: 910 | |||||
| Safety Standards | 5Kgs | |||||
| EMC Standard | UL1950, TUV EN60950 | |||||
| Model Performance | CISPR22(EN55022), IEC1000-42, 3, 4, 5, 6, 8, 11 IEC100-3-2 | |||||
