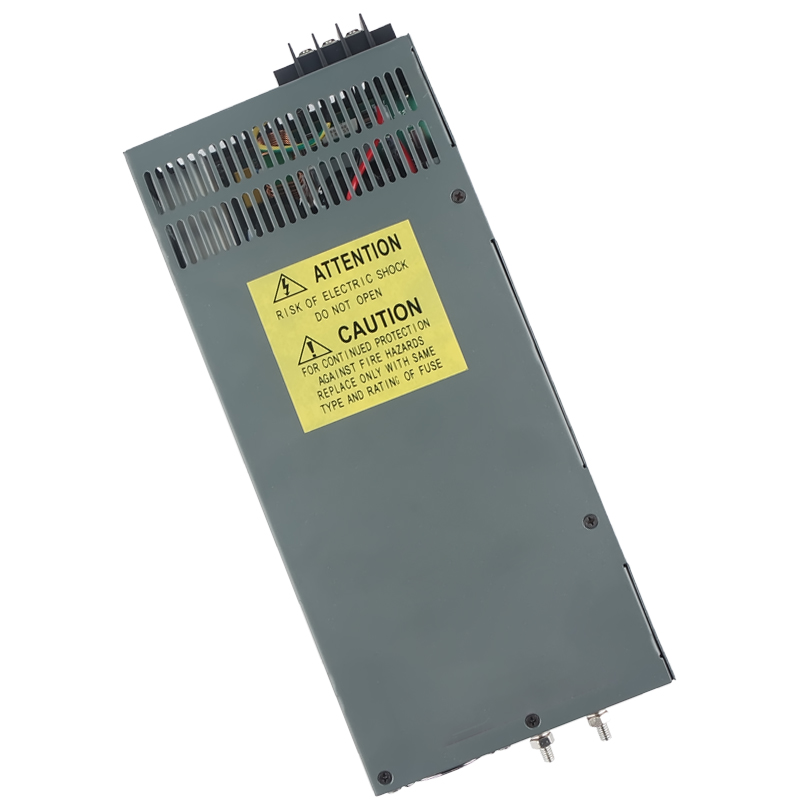

Switching Converter, Power Supply Adapter Transformer for LED Strip Light, AC 380V to DC 24V 83A 2000W LED Strip Light Power Supply Switching Mode Converter
380V AC range selectable, air cooling by the built-in fan.
Filter capacitance; High withstand voltage; Low dissipation; Large capacity.
Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.
| Model | SV-2000-24 | SV-2000-27 | SV-2000-36 | SV-2000-48 | |
| Output | Dc output voltage | 24V | 27V | 36V | 48V |
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | |
| Rated output current | 83A | 74A | 55A | 41A | |
| Output current range | 0-83A | 0-47A | 0-55A | 0-41A | |
| Output power | 2000W | 2000W | 2000W | 2000W | |
| Ripple and the noise | 240mVp-p | 240mVp | 240mVp-p | 480mVp-p | |
| Dc voltage adjustable scope | + 5%; By external 2 ~ 5 V voltage control, which can adjust the output voltage of the rated voltage of the in the range of 40% ~ 100% in value | ||||
| Start, rise, keep time | 800ms, 50ms, 16ms Loaded with | ||||
| Input | Input voltage range | 200V~264VAC 47~63 Hz; 290~370VDC | |||
| Exchange input current | 11A/ 380VAC | ||||
| Efficiency | 85% | 85% | 86% | 87% | |
| Impulse current | 120A/230V | ||||
| Leakage current | 3.5 mA/240VAC | ||||
| Protection characteristics | Overload protection | 110%~135% | |||
| Protection way: current limiting, delay shut off, restart | |||||
| High temperature protection | TSW1 (power tube) temperature > 100 ℃, restart when cut off output | ||||
| Environment | Working temperature, humidity | -10℃~+65℃,20%~90 %RH | |||
| Keep temperature, humidity | -20℃~+85℃,10%~95 %RH | ||||
| Vibrate resistance | 10 ~ 200 Hz ac, 2 G 10 min. / 1 cycle time, 60 minutes, the axis | ||||
| Security | Compression sex | I/P-O/P, I/P-FG:1500VAC | |||
| Insulation resistance | I/P-O/P, I/P-FG, >100M Ohms / 500VDC | ||||
| EMC standard | Accord with FCC Part 15 Class A | ||||
| Other | Weight | 5.3Kg; | |||
| Packaging | 2pcs/11kg/CARTON | ||||
