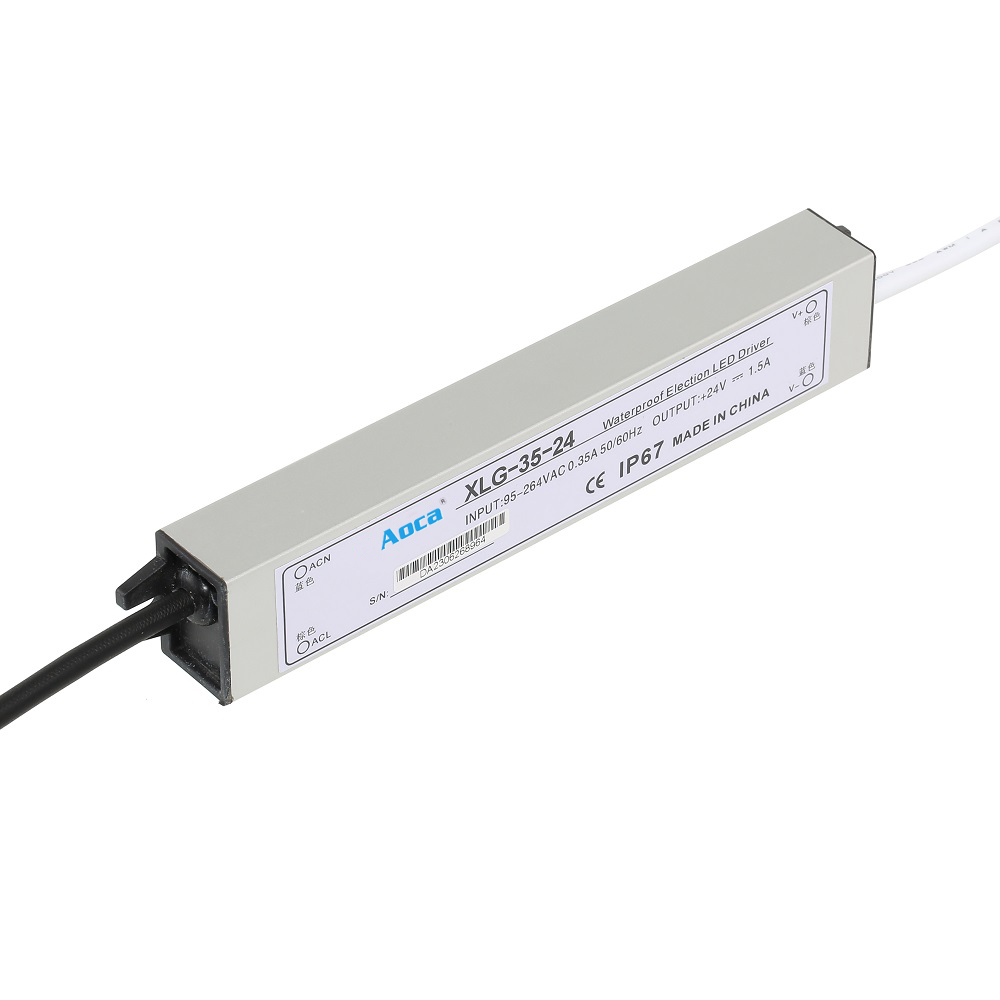

XLG-35W series meet the energy-saving requirements of the new generation of LED lighting, providing a cost-effective solution for various LED lighting. It’s a waterproof AC DC LED Drive power supply, with constant voltage, constant current, constant power output design, using the international common AC input voltage range, the whole series to provide 12V,24V,36V and 48V output.
| Model | XLG-35-12 | XLG-35-24 | XLG-35-36 | XLG-35-48 |
| DC output voltage | 12V | 24V | 36V | 48V |
| Rated output current | 3A | 1.5A | 1A | 0.75A |
| Constant current range | 6~12V | 12~24V | 18~36V | 24~48V |
| Output power | 36W | 36W | 36W | 36W |
| Wave and noise | 180mVp-p | 180mVp-p | 200mVp-p | 200mVp-p |
| Voltage accuracy | ± 3% | ± 2% | ± 1% | ± 1% |
| Line regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Load regulation | ± 2% | ± 1% | ± 0.5% | ± 0.5% |
| Start, rise, hold time | 500ms，80ms，16ms/230VAC (at full load) | |||
| Input voltage range | 95 ~264VAC，135 ~373VDC | |||
| Frequency range | 47 ~ 63Hz | |||
| AC input current | 0.35A/230VAC | |||
| Efficiency | 86.5% | 87.5% | 87.5% | 88.5% |
| Impulse current | Cold start current 25A/230VAC | |||
| Leakage current | <1mA/240VAC | |||
| Overcurrent protection | 95%~108% of the rated output current starts overcurrent limit， recover automatically after abnormal conditions are removed | |||
| Short circuit protection | Hiccup mode: recover automatically normal output after abnormal conditions are removed | |||
| Working temperature | -20℃~ +60℃ | |||
| Working humidity | 20% ～90% RH, non condensing | |||
| Storage temperature and humidity | -40℃~ +85℃；10% ～95% RH，non condensing | |||
| Seismic resistance | 10~500Hz,，3G 10min/ 1 cycle，X, Y, Z axes，duration 60 minutes | |||
| Pressure resistance | I/P~O/P：1.5KVAC I/P~FG：1.5KVAC O/P~FG：0.5KVAC | |||
| Isolation resistance | I/P~O/P，I/P~FG，O/P~FG: 100M Ohms/500VDC/25℃/70%RH | |||
| Safety standard | Compliance to UL60950-1，TUV EN60950-1，IP67 | |||
| Electromagnetic compatibility emission | Compliance to EN55022 Class A | |||
| Electromagnetic compatibility immunity | Compliance to EN55024 | |||
| Dimension | 182*30*20mm (L*W*H) | |||
| Packing | 0.22kg/80pcs/18.5kg/0.025 cubic meters | |||
