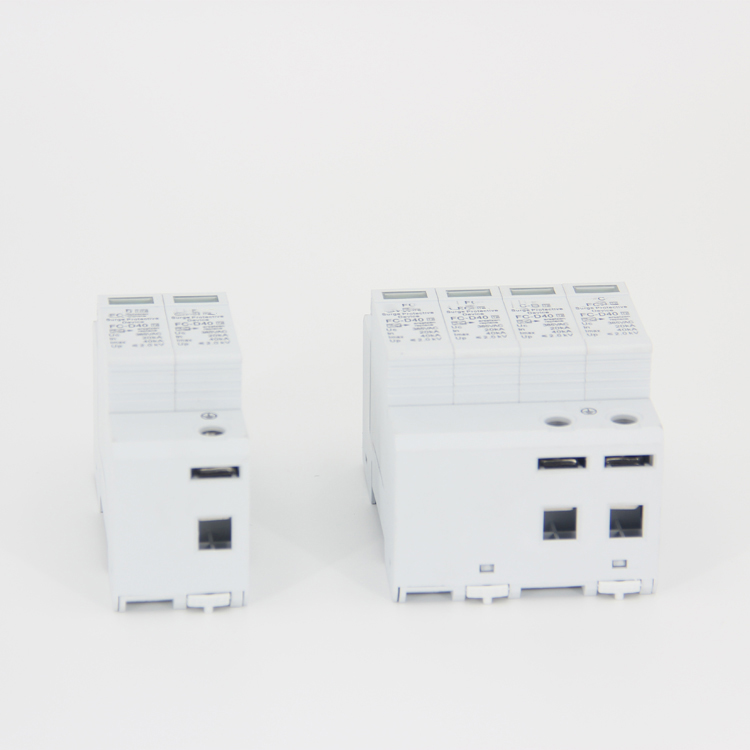

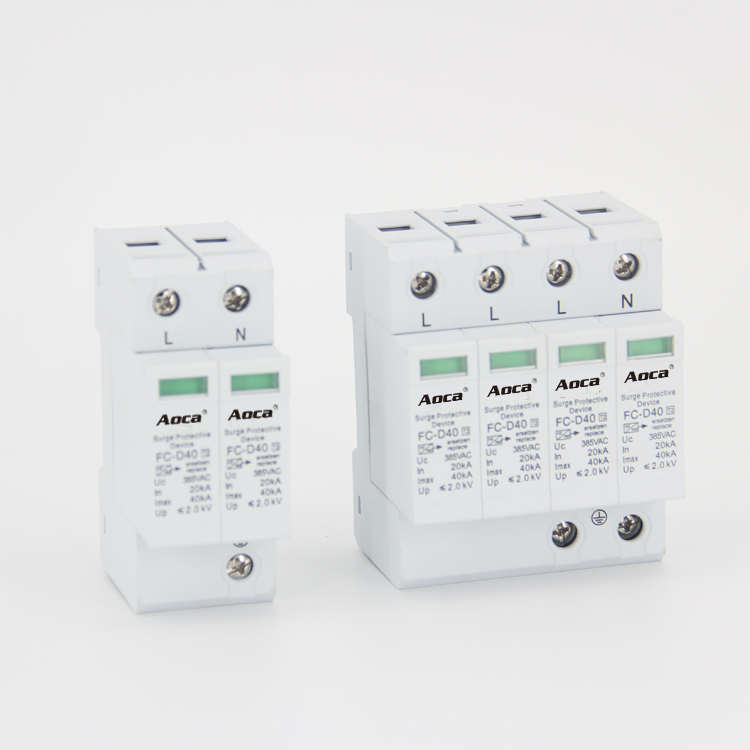

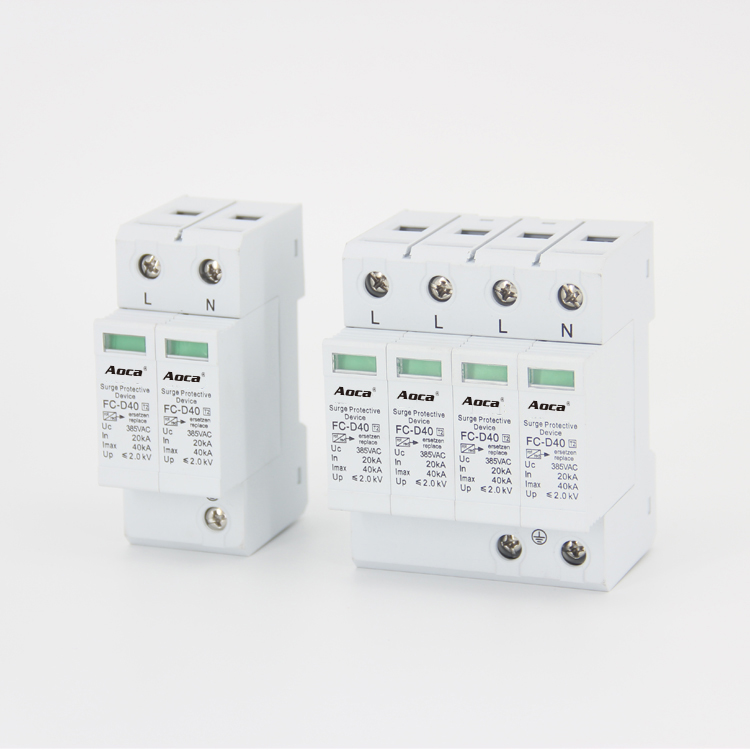

This ac power spd surge protection device suits for 275V AC 50/60HZ Power supply system. Normally installed on the joint of LPZ1 or LPZ2 and LPZ3, designed accordingly to IEC61643-11/EN61643-11, GB18802.11 standard. It’s standard 35mm din rail installation. There is failure release mounted on the module of surge protective device. When SPD fails in breakdown for over-heat or over-current, the failure release will help electric device separate from the power supply system and give the indication signal. Green means normal, red means fault.
Features ;
1.Module design, easy to install, and change change module no need power off. 2.Inside over-current, over-heat, temperature control open circuit. 3.Fast response time, low residual voltage. 4.Window color indicates working condition, green means normal, red means fault. 5.Max discharge current can endure 40kA(8/20), T2 class II thunder and lightning protection.
| Model | FC-D40 |
| Maximum Continuous Operating Voltage Uc | 275V AC |
| Nominal Discharge Current (8/20µs) | 20kA |
| Maximum Discharge Current(8/20µs) | 40kA |
| Voltage Protection Level Up | 1.5kV |
| Response Time tA | ≤25ns |
| Indication Method | Visible window,Green=normal, Red=defect |
| Min. sectional area of incoming wire L/N | 4mm2 |
| Min. sectional area of incoming ground wire PE | 6mm2 |
| Method of Installation | 35mm Din Rail |
| Material of shell | UL94-V0 fireproof |
| Remote contact selectable | C+NC means normally closed C+NO means normally open C means normal contact |
| Protection level of outer Shell | IP20 |
| Working temperature | –25 -+70℃ |
| Test standard | EN 61643-11/GB18802.1 |
| IEC test classification | T2/Class II |
| Poles | 1P/2P/3P/4P/1P+N-PE/3P+N-PE |
| Rated Voltage | 220V | Max Discharge Current | 40000 A |
| Type | T2 | Model Number | FC-D40 |
| Place of Origin | Zhejiang, China | Brand Name | AOCA |
| Product name | Surge Protective Device | Application | Solar System |
| Imax | 40kA(8/20) | AC | 275V AC |
| Poles | 2P | Certificate | CE ISO9001 RoHS |
| Color | White | Function | lightning protection |
| Standard | IEC/EN 61643-11 | Material | PBT |
