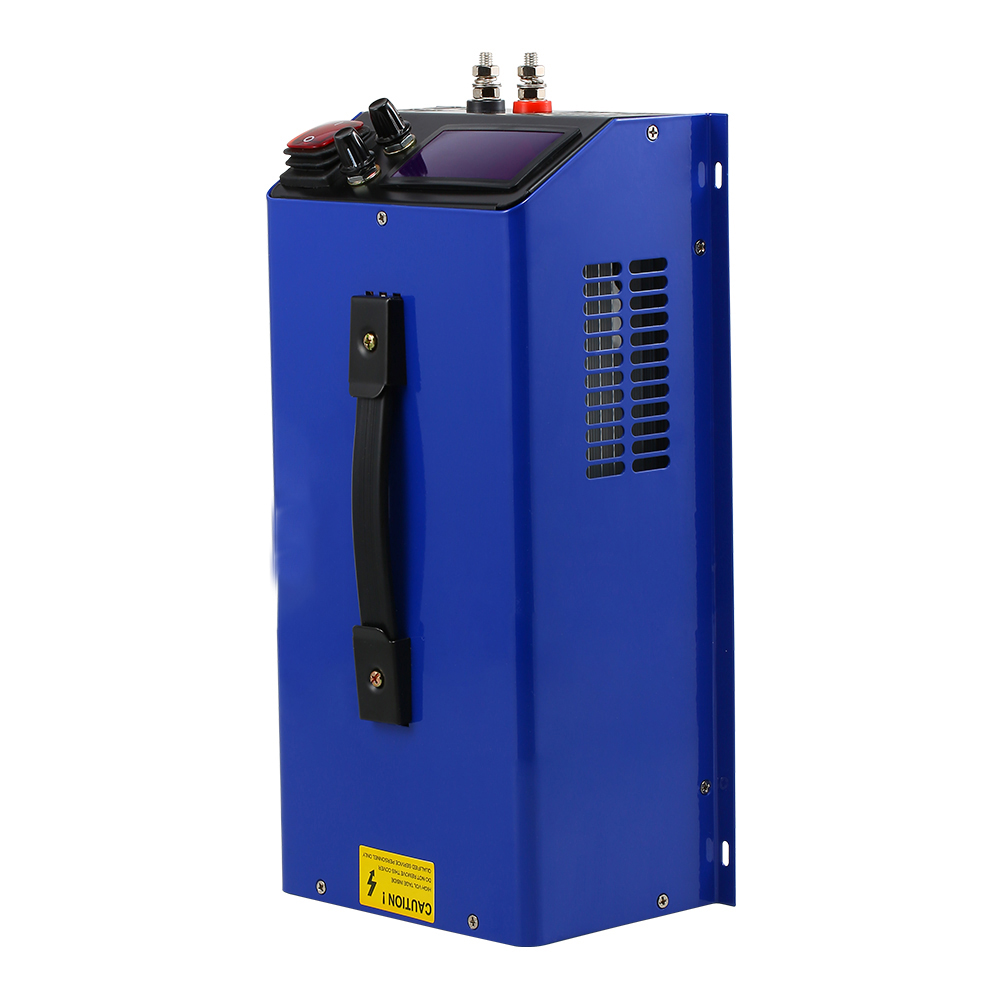

Single output: power 1000W
Input voltage: 200-250V AC / DC 300-380V
General Specification
| Model | STV-1000-15 | STV-1000-30 | STV-1000-60 | STV-1000-120 |
| DC Output Voltage | 0-15V | 0-30V | 0-60V | 0-120V |
| Output Voltage Tolerance(Note 2) | ±2% | ±2% | ±2% | ±2% |
| Rated Output Current | 66A | 33A | 16A | 8.3A |
| Output Current Range | 20～66A | 10～33A | 5~16A | 5~8.3A |
| Ripple &Noise(Note 3) | 180mVp-p | 300mVp-p | 470mVp-p | 800mVp-p |
| Line Regulation(Note 4) | ±0.5% | |||
| Load Regulation(Note 5) | ±3% | |||
| DC Output Power | 1000W | 1000w | 1000w | 1000w |
| Efficiency | 84% | 88% | 89% | 90% |
| DC Output Adjustment Range | ±10% | |||
| Input Voltage Range | 200-250V AC/DC 300-380V | |||
| Input Current | 20A | |||
| Power Factor | 0.65-0.75 | |||
| Inrush Current | 40A @230V | |||
| Leakage Current | <0.5mA@240VAC | |||
| Overload Protection | 105%-115%,resets after 2-minute input power-off | |||
| Overvoltage Protection | 120%-135%VO | |||
| Overtemperature Protection | Yes | |||
| Temperature | ±0.03%/℃ | |||
| Startup/Rise/Hold Time | 1s/100ms/50ms | |||
| Vibration Resistance | 10-500Hz,2G,10min/axis | |||
| Withstand Voltage | Input-Output:1.5KV AC;Input-Case:1.5KV AC;Output-Case:0.5KV AC | |||
| Isolation Resistance | Input-Output/nput-Case/Output-Case:500V DC/100MΩ | |||
| Operating Temp./Humidity | -10℃ to +60℃,10%-95%RH | |||
| Storage Temp./Humidity | -20℃ to +85℃,10%-95%RH | |||
| Packing | 2pcs/ctn cartion size:45*26*39cm 3.75KGS/PC | |||
