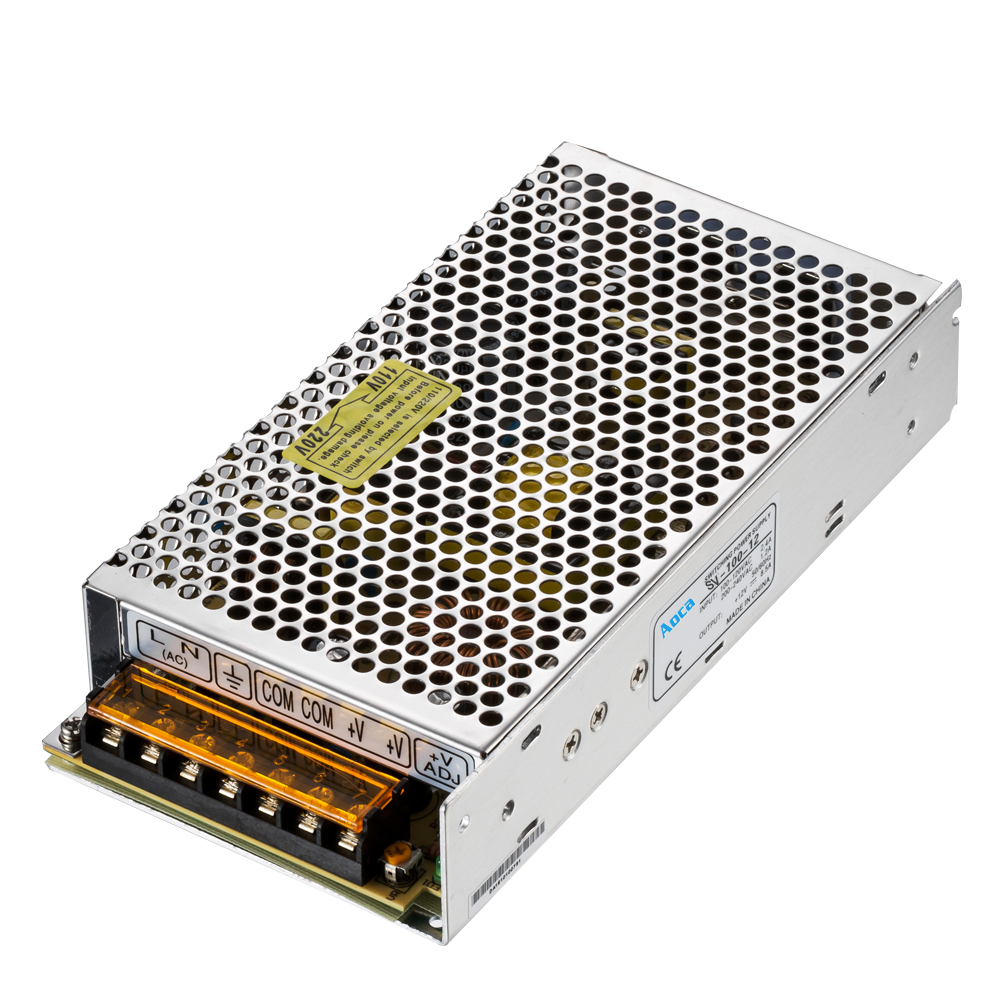

SV-100W Switching Power Supply is a reliable switching power supply with high-quality material, durable, and safety to use.
A Switching Power Supply that can keep the voltage stable.Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply380V AC input range, cooling by free air convection.
| Specification | SV-100-5 | SV-100-12 | SV-100-24 | SV-100-48 |
| DC output voltage,current | 5V 0～20A | 12V 0～8.5A | 24V 0～4.5A | 48V 0～2.1A |
| Wave and noise | 75mVp-P | 100mVp-P | 120mVp-P | 150mVp-P |
| Inlet wire stability | ±0.5% | ±0.3% | ±0.2% | ±0.2% |
| Load stability | ±0.5% | ±0.3% | ±0.2% | ±0.2% |
| Efficiency | 0.78 | 0.81 | 0.84 | 0.84 |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| Input voltage range | 90~132VAC/180~264VAC by switch 254～370VDC 47～63Hz | |||
| Impact current | Cold start current 30A/115VAC 60A/230VAC | |||
| Overload protection | 105%～150%cut off the output,automatic recovery | |||
| Other protection | Over current protection /Short-circuit protection | |||
| Setup,rise,hold uptime | 200ms,50ms,20ms/230VAC at full load | |||
| Withstand voltage | I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ | |||
| Working temperature | -10℃~+50℃ | |||
| Dimension | 199×98×38mm | |||
| Weight | 0.6kg | |||
| Packing | 43×32.5×24CM/30PCS/18kg | |||
