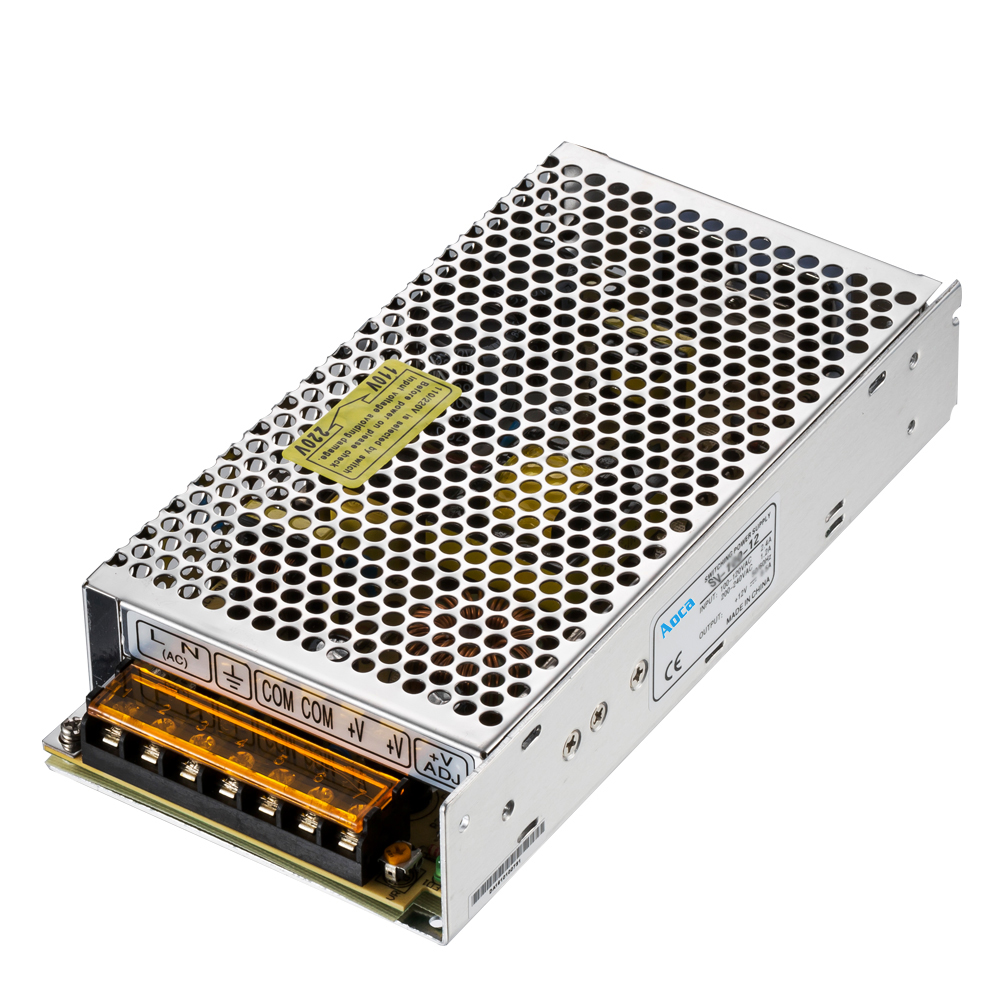

SV-150W Switching Power Supply is the most widely used power supply among AoCa products.
It has high efficiency, stable quality, and a wide range of uses.It can be used in LED, industry, automation, industrial control, monitoring, network communication, and other fields.380V AC input range, cooling by free air convection.
| Specification | SV-150-5 | SV-150-12 | SV-150-24 | SV-150-48 |
| DCoutput voltage,current | 5V0～30A | 12V0～12.5A | 24V 0～6.5A | 48V 0～3.13A |
| Wave and noise | 150mVp-P | 180mVp-P | 240mVp-P | 240mVp-P |
| Inlet wire stability | ±0.5% | ±0.3% | ±0.2% | ±0.2% |
| Load stability | ±0.5% | ±0.3% | ±0.2% | ±0.2% |
| Efficiency | 0.78 | 0.82 | 0.85 | 0.87 |
| Adjustable range for DCvoltage | ±10% | ±10% | ±10% | ±10% |
| Input voltage range | 90～132VAC/180～380VAC by switch 254~380VDC 47～63Hz | |||
| Impact current | Cold start current 35A/230VAC | |||
| Overload protection | 105%～150%cut off the output,automatic recovery | |||
| Over voltage protection | 115%～135%shut down O/P voltage,re-power on to recover | |||
| Setup,rise,hold uptime | 100ms,50ms,20ms/230VAC at full load | |||
| Withstand voltage | I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ | |||
| Working temperature | -10℃~+50℃ | |||
| Dimension | 199×98×38mm | |||
| Weight | 0.85kg | |||
| Packing | 42×31.5×26CM/20PCS/17kg | |||
