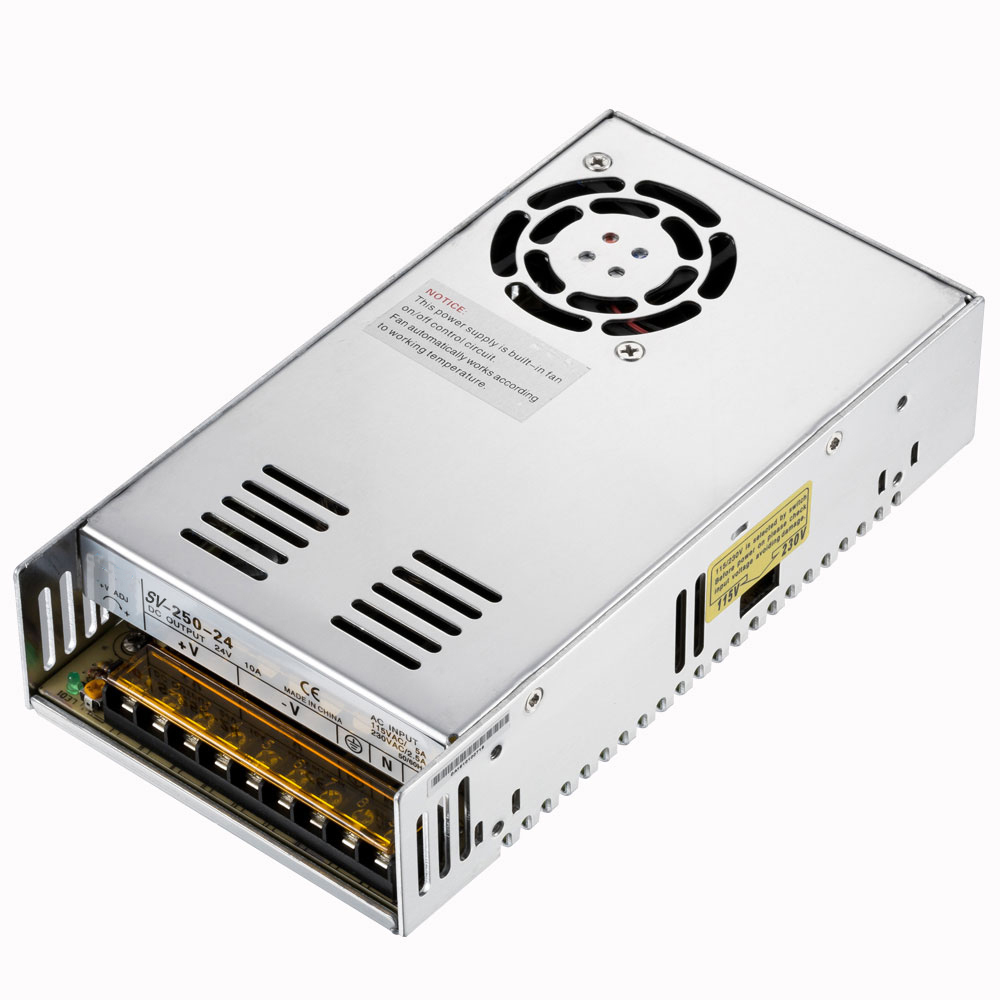

SV-250W Switching Power Supply is the most widely used power supply among AoCa products.
It has high efficiency, stable quality, and a wide range of uses.It can be used in LED, industry, automation, industrial control, monitoring, network communication and other fields.380V AC input range, cooling by free air convection.
| Specification | SV-250-5 | SV-250-12 | SV-250-24 | SV-250-48 |
| DC output voltage,current | 5V 0~50A | 12V 0～20.8A | 24V 0～10.4A | 48V 0～5.2A |
| Wave and noise | 150mVp-P | 150mVp-P | 180mVp-P | 200mVp-P |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 0.79 | 0.82 | 0.83 | 0.86 |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| Input voltage range | 90～132VACor 180～380VAC 47～63Hz | |||
| Impact current | Cold start current 15A/115VAC 30A/380VAC | |||
| Overload protection | 105%～201%cut off the output,automatic recovery | |||
| Other protection | Over current protection /Short-circuit protection | |||
| Setup,rise,hold uptime | 200ms,50ms,20ms/230VAC atfull load | |||
| Withstand voltage | I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ | |||
| Working temperature | -10℃~+50℃ | |||
| Dimension | 215×115×50mm | |||
| Weight | 0.9kg | |||
| Packing | 42×31.5×26CM/20PCS/18kg | |||
