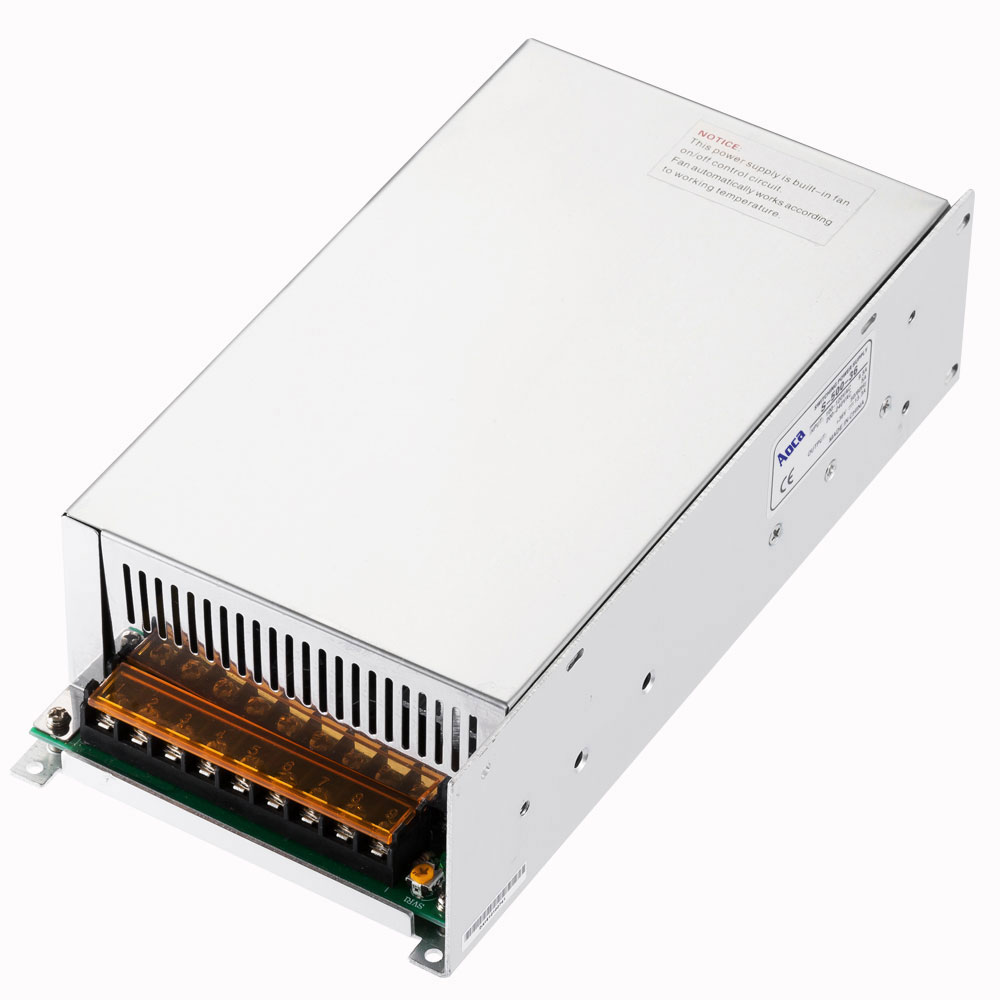

DC 24V 20A 500W Switch Power Supply Driver,Power Transformer for CCTV camera/Security System/LED Strip Light/Radio/Computer Project 380V AC
| Model | SV-500-12 | SV-500-15 | SV-500-24 | SV-500-48 |
| Specification | ||||
| DC Output voltage | 12V | 15V | 24V | 48V |
| Output voltage range(Note:2) | ±1% | ±1% | ±1% | ±1% |
| Rated output current | 41.6A | 33.3A | 20.8A | 10.4A |
| Output current range | 0~50A | 0~40A | 0~25A | 0~12.5A |
| Wave and noise(Note:3) | 120mVp-p | 150mVp-p | 240mVp-p | 240mVp-p |
| Inlet stability(Note:4) | ±1% | ±1% | ±1% | ±1% |
| Load stability(Note:5) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC output power | 500W | 500W | 500W | 500W |
| Efficiency | 83% | 84% | 86% | 87% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 88~132VAC/190~380VAC selected by switch 47~63Hz,250~380VDC | |||
| Input current | 5A/230V | |||
| AC Inrush current | Cold-start current 46A/380V | |||
| Leakage current | <3.5mA/380VAC | |||
| Overload protection | 120%-150% Reset: auto recovery | |||
| Over-voltage protection | 120%-150% | |||
| High-temperature protection | ERH3≥65°C~70°CFan on ,≤55°C~60°CFan off ,≥80°C~85°C.Cut off output(5-15V)~(24-48V) | |||
| Temperature coefficient | ±0.03%/°C(0~50°C) | |||
| Setup, rise, hold up time | 1s, 100ms, 50ms | |||
| Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes | |||
| Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
| Working temperature and humidity | -10°C~+60°C,10%~95%RH | |||
| Store temperature and humidity | -20°C~+85°C,10%~95%RH | |||
| Overall dimension | 238X124X65mm (L*W*H) | |||
| Weight | 1.40kgS | |||
| Safety standards | GB4949,UL60950,EN60950 | |||
| EMC standards | According to GB9254 EN55022 EN55024 A level design | |||
