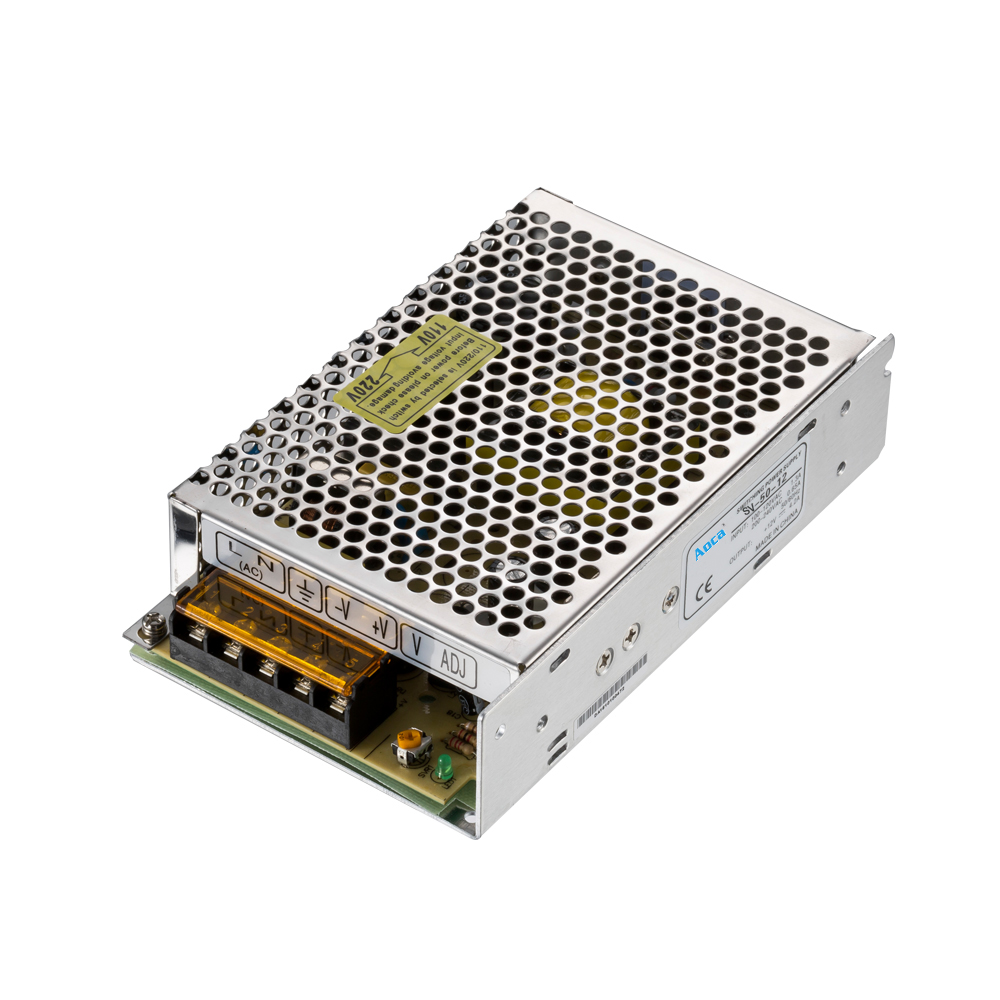

SV-50W is an Enclosed switching power supply Low price and high reliability 105℃ output capacitor AC input power.
A Switching Power Supply that can keep the voltage stable.Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply380V AC input range, cooling by free air convection
| Specification | SV-50-5 | SV-50-12 | SV-50-15 | SV-50-24 |
| DC output voltage,current | 5V 0～10A | 12V 0～4.2A | 15V0～3.4A | 24V0～2.1A |
| Wave and noise | 75mVp-P | 100mVp-P | 100mVp-P | 100mVp-P |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 0.71 | 0.78 | 0.78 | 0.82 |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| Input voltage range | 90～132VAC/180~380VAC by switch 254~380VDC 47~63Hz | |||
| Impact current | Cold start current 18A/115VAC 36A/230VAC | |||
| Overload protection | 105%～150%cut off the output,automatic recovery | |||
| Other protection | Over current protection /Short-circuit protection | |||
| Setup,rise,hold uptime | 200ms,100ms,20ms/230VAC at full load | |||
| Withstand voltage | I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ | |||
| Working temperature | -10℃~+50℃ | |||
| Dimension | 159×98×38mm | |||
| Weight | 0.5kg | |||
| Packing | 34×32×24CM/30PCS/15kg | |||
