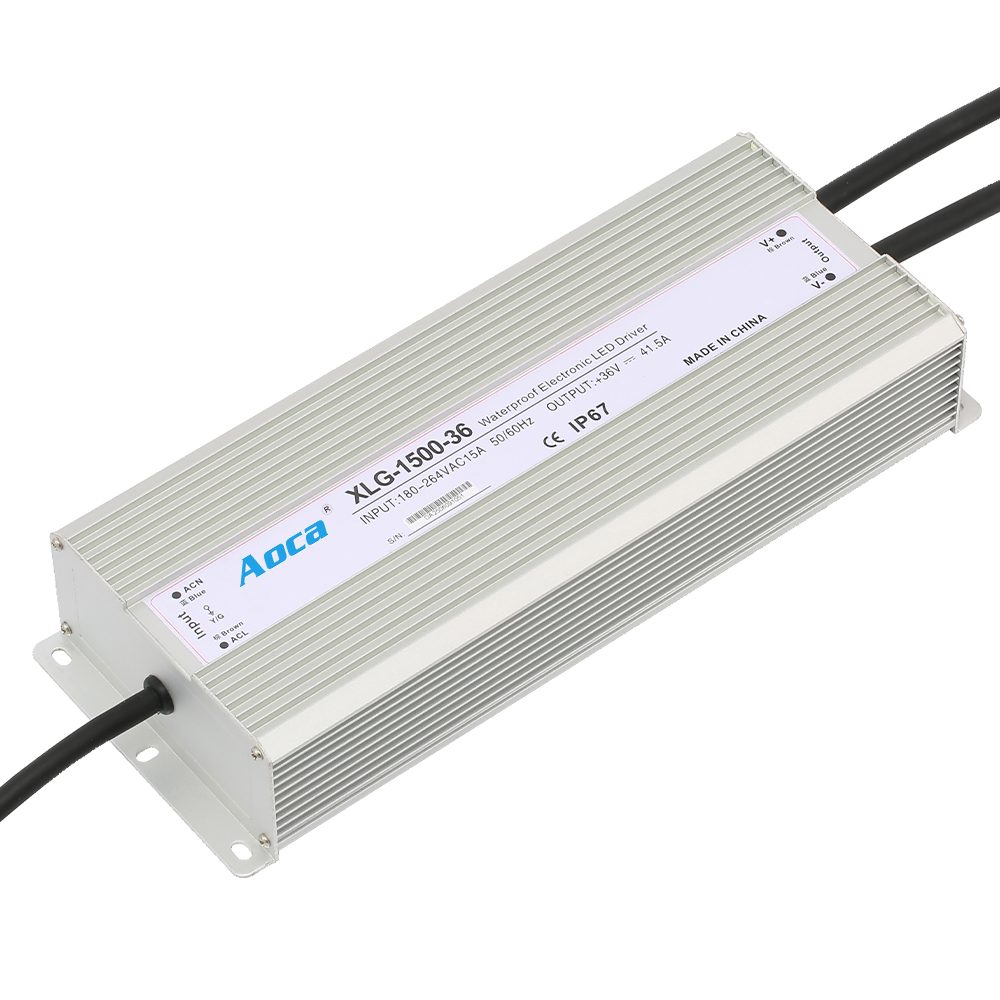

XLG-1500W is a robust, high-power 1500W waterproof power supply engineered for the most challenging environments. Housed in a durable metal case, it is built to withstand harsh conditions while delivering reliable, high-efficiency performance. This unit operates on a 180-264VAC input and achieves an impressive efficiency of up to 95%, ensuring optimal power conversion and minimal heat generation. It is available in 24V, 36V, 48V, and 110V output models to support a wide range of high-power applications.
| Model | XLG-1500-24 | XLG-1500-36 | XLG-1500-48 | XLG-1500-110 |
| DCoutput voltage,rated current | 24V 55A | 36V 41.5A | 48V 31A | 110V 13.6A |
| Wave and noise | 240mVp-P | 300mVp-P | 350mVp-P | 650mVp-P |
| Line regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 0.935 | 0.945 | 0.95 | 0.95 |
| Voltage accuracy | ±2% | ±2% | ±2% | ±2% |
| Input voltage range | 180～264VAC/245～373VDC 47～63Hz | |||
| Impact current | Cold start current 65A/230VAC | |||
| Overcurrent protection | 95%～105%of the rated output current starts overcurrent limit,recover automatically after abnormal conditions are removed | |||
| Short circuit protection | Hiccup mode:recover automatically normal output after abnormal conditions are removed | |||
| Setup,rise,hold up time | 500ms,50ms,24ms/230VAC(at full load) | |||
| Pressure resistance | I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100M Ohms/500VDC/25℃/70%RH | |||
| Working temperature | -40℃~+70℃ | |||
| Dimension | 320×120×56mm | |||
| Weight | 2.75kg | |||
| Packing | 6PCS/2.75kg/17.5kg/0.033m³ | |||
